System Architecture

1) High‑Level Design

IntelliHome separates the control plane (Ryu apps + policy/analytics) from the data plane (Open vSwitches in Mininet). Packets traverse programmable switches, followed by decisions (allow/blocked/malicious/benign) made centrally using MUD policy checks, ML inference, and a PageRank‑style trust score.

Data Plane: Mininet virtual switches (OpenFlow 1.3), IoT hosts, Internet gateway.

Control Plane: Ryu controller with modular apps:
- Topology & Flow Monitor
- MUD Policy Engine
- ML Inference Engine
- Trust Scoring (PageRank)
- REST API (Northbound) for UI

Presentation Layer: This website (status, logs, charts, demo).

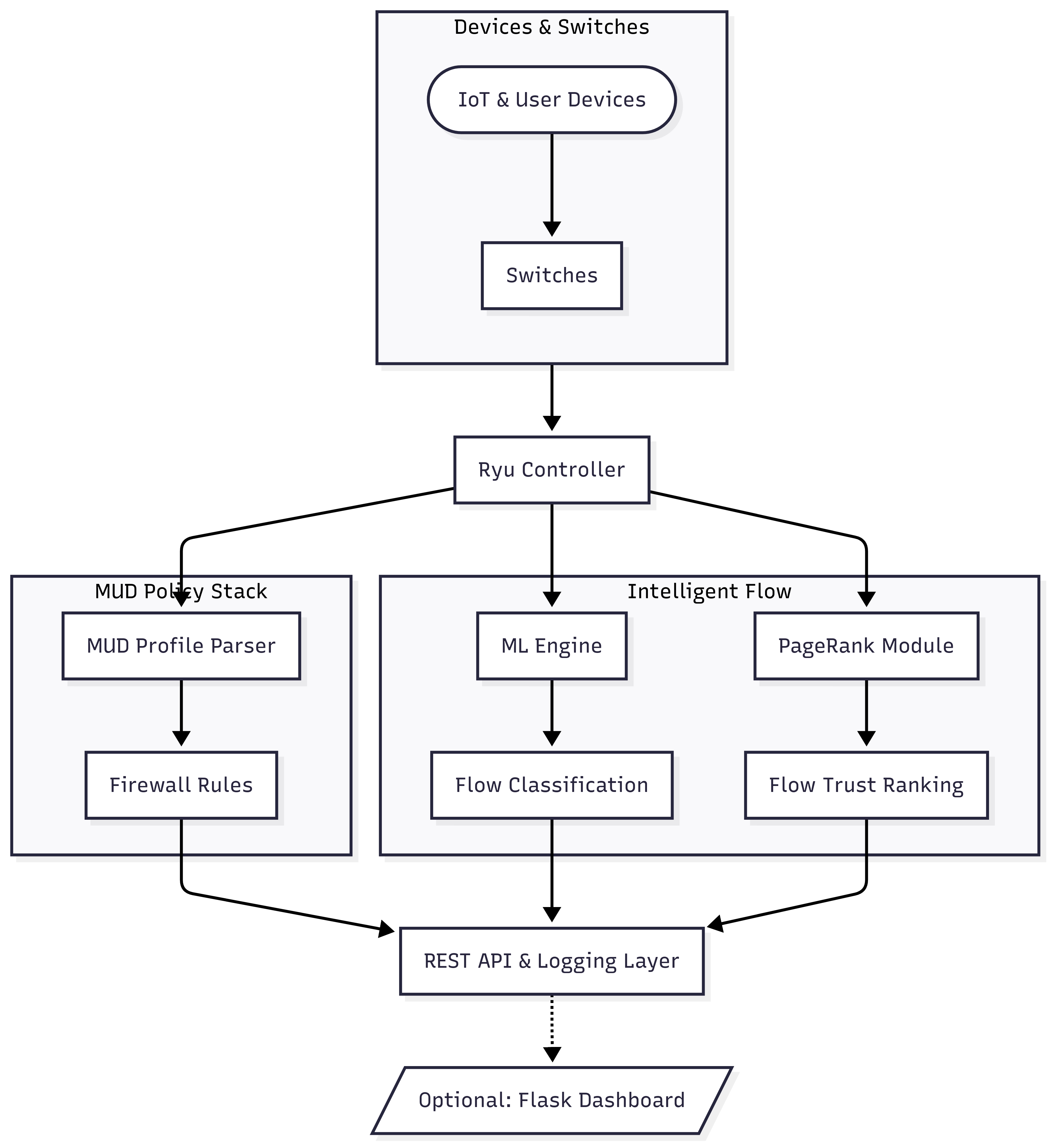

System Diagram

The following diagram illustrates the core components and data flow within IntelliHome SDN:

Module Map (This Project)

Ryu App: ryu_project.py — main OpenFlow 1.3 controller (SimpleSwitchRouting), REST (MudRestController).
MUD Policy Data: mud_policy — device allowlists (see “MUD Policy Engine”).
ML Inference: model_engine.py — classify_flow(features), loads rf_model.pkl via joblib/pandas.

The Ryu app in ryu_project.py drives the control plane. Switches (OVS) form the data plane in Mininet. For each new flow: MUD baseline check → ML inference via model_engine.classify_flow → Trust (PageRank) → fused decision → OpenFlow rules.

2) Components & Responsibilities

Ryu App (ryu_project.py)
- SimpleSwitchRouting — OpenFlow 1.3, topology/mac tables, flow installs, flood detection.
- MudRestController — REST endpoints for UI.
MUD Policy Engine (data-driven) — loads allowlists from mud_policy (see note below) and enforces device-specific baselines.
ML Inference (model_engine.py) — classify_flow() returns "benign" / "malicious" using rf_model.pkl.
Trust Scoring — NetworkX PageRank (in ryu_project.py) on host-to-host edges; recompute periodically.
Northbound REST — JSON for blocked flows and trust scores (see §6).

3) Data & Control Flow

PacketIn → Ryu.
MUD pre-check. If src⇢dst violates the device baseline from mud_policy, mark and block/quarantine.
Feature extraction. proto, pkt_len, src_port, dst_port (passed to ML).
ML inference. from model_engine import classify_flow → classify_flow(features).
Trust update. Add edge src→dst to trust_graph, recompute PageRank periodically.
Decision. Fuse MUD ∧ ML ∧ Trust → allow / rate-limit / quarantine / block.
Program switch. Issue flow_mod with timeouts & priority.
Expose state. Append to logs & expose via REST for UI.

4) OpenFlow Pipeline (Tables)

Table 0 — Classify: match L2/L3/L4; set metadata (device_id); GOTO:10.
Table 10 — Policy: MUD allow/deny & optional meters; GOTO:20.
Table 20 — Forward: output or controller on miss.

# conceptual rules installed by ryu_project.py
      table=0  match:ip_proto=6,tp_dst=443                actions:set_field:device=cam1,GOTO:10
      table=10 match:device=cam1,policy=allow_tls         actions:meter:1,GOTO:20
      table=10 match:device=cam1,ip_proto=17,tp_dst=23    actions:drop
      table=20 match:nw_dst=10.0.0.42                     actions:output:3

5) Decision Logic (Fusion)

MUD: ALLOW/DENY/UNKNOWN from mud_policy.
ML: classify_flow() → "benign"/"malicious".
Trust: normalized PageRank score ∈ [0,1].

// in ryu_project.py (conceptual)
      if MUD == "DENY":
        action = DROP
      elif ML == "malicious":
        action = QUARANTINE if Trust < 0.2 else DROP
      elif MUD == "ALLOW" and ML == "benign" and Trust > 0.4:
        action = ALLOW
      else:
        action = RATE_LIMIT

6) Northbound REST API (from `MudRestController`)

GET /mud/blocked → list of blocked/quarantined flows.
GET /api/trust → current PageRank trust scores.

{
        "device": "thermostat-1",
        "flow": "10.0.0.5:443/tcp → 8.8.8.8",
        "mud": "ALLOW",
        "ml": "benign",
        "trust": 0.63,
        "decision": "ALLOW",
        "switch": "s1", "table": 20, "priority": 200, "idle_timeout": 60
      }

7) MUD Policy Engine

Source: mud_policy file with per-device allowlists (IP/ports/directions).
Load in ryu_project.py: parse to internal templates; proactively install allow rules; default-deny everything else.
Drift: traffic outside baseline → extra scrutiny (ML + Trust) and potential quarantine.

8) ML Inference (`model_engine.py`)

Model file: rf_model.pkl (joblib).
Signature: classify_flow({"proto","pkt_len","src_port","dst_port"}) → "benign"|"malicious"|"unknown".
Integration in ryu_project.py: from model_engine import classify_flow; call only after MUD allows.

9) Trust Scoring (PageRank in `ryu_project.py`)

Maintain trust_graph (directed src→dst edges on allowed flows). Recompute trust with networkx.pagerank() periodically (e.g., every 20 new edges) and expose via /api/trust.

10) Telemetry, Logging & Storage

Blocked flows: append to self.blocked_flows (served by /mud/blocked).
Counters: per-device flow verdicts, flood-detect hits, rule install counts, latency.
Export: optional CSV/JSON for the Results page.

11) Security & Failure Considerations

Fail-safe: if ML or MUD data unavailable → default to strict allowlist + rate-limit + alert.
REST hardening: validate inputs; restrict methods; audit overrides.
Timeouts: use idle_timeout to clear stale reactive rules.

12) Performance & Scalability

Proactive MUD rules reduce PacketIn load.
Batch PageRank recomputation (edge threshold) and ML gating (after MUD) prevent hot paths.
Meters/groups can rate-limit suspected flows.

13) Configuration (Excerpt)

{
        "openflow": "1.3",
        "timeouts": { "idle": 60, "hard": 0 },
        "flood": { "PACKET_THRESHOLD": 1000, "TIME_WINDOW_SEC": 200 },
        "ml": { "module": "model_engine.py", "model_file": "rf_model.pkl" },
        "trust": { "recompute_every_edges": 20, "alpha": 0.85 },
        "mud": { "file": "mud_policy.json", "default_policy": "deny" }
      }

14) Demo Runbook

Start controller: ryu-manager ryu_project.py --observe-links
Launch Mininet: sudo mn --custom topo.py --topo intellihome --controller=remote,ip=127.0.0.1,port=6633 --switch ovs,protocols=OpenFlow13
Generate benign + attack traffic; watch Demo & Results pages pull from /mud/blocked and /api/trust.
